Prior elicitation

graph LR
    g0[Project loading];
    g1[Prior elicitation];
    g2[Posterior inference];
    g3[Post-MCMC analysis];
    g0 --> g1;
    g1 --> g2;
    g2 --> g3;

    classDef selected-mermaid-node fill:#33658a60,stroke:#cc5f00,stroke-width:4px
    class g1 selected-mermaid-node

Prior Elicitation involves building and manipulating a model with stratigraphic relationships, context grouping, group orderings and dating information to form the stratigraphic graph.

The stratigraphic graph can then be combined with additional information, such as identify residual & intrusive contexts; and the types of group relationships, to form the chronological graph.

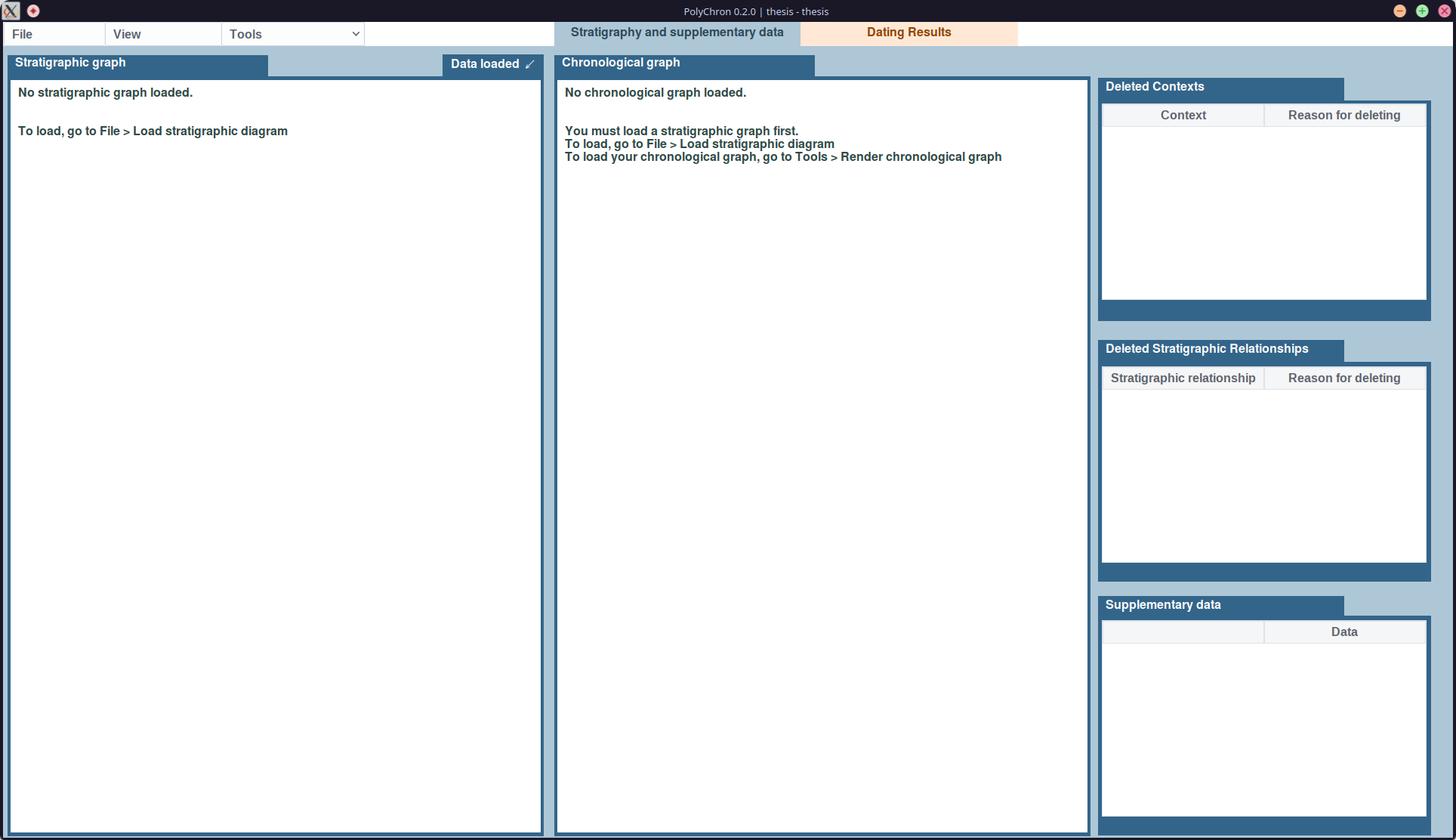

When a model has been created or selected, the stratigraphy and supplementary data tab will have been opened in the main window:

Building the stratigraphic DAG

There are 4 mandatory input files which must be provided for a model.

Input stratigraphic relationships

The stratigraphic relationships input file provides the contexts and the stratigraphic relationships between them.

It is a CSV file with 2 columns, with each row providing a stratigraphic relationship:

Column	Type	Description
above	str	The younger context.
below	str	The older context, which may be omitted for unconnected contexts

Context names must be strings which do not contain certain characters such as :

An example csv file from "Moody, Bryony (2023) Semi-Automation of Bayesian Chronology Construction Using a Graph-Theoretic Approach. PhD thesis, University of Sheffield.":

above,below
814,758
1235,814
358,1235
813,358
1210,813
358,493
923,925
358,923
358,1168
758,
925,
493,
1168,

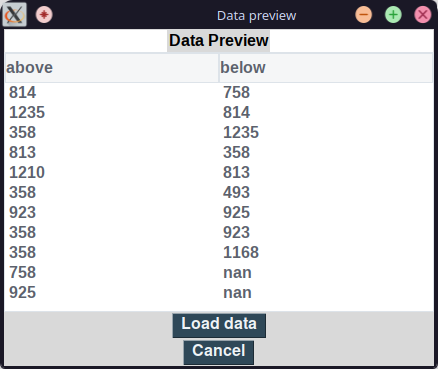

The file can be loaded into the model by selecting File > Load stratigraphic relationship file (.csv) and selecting the CSV file from disk. A preview popup window will open, allowing you to confirm you wish to load the file or not.

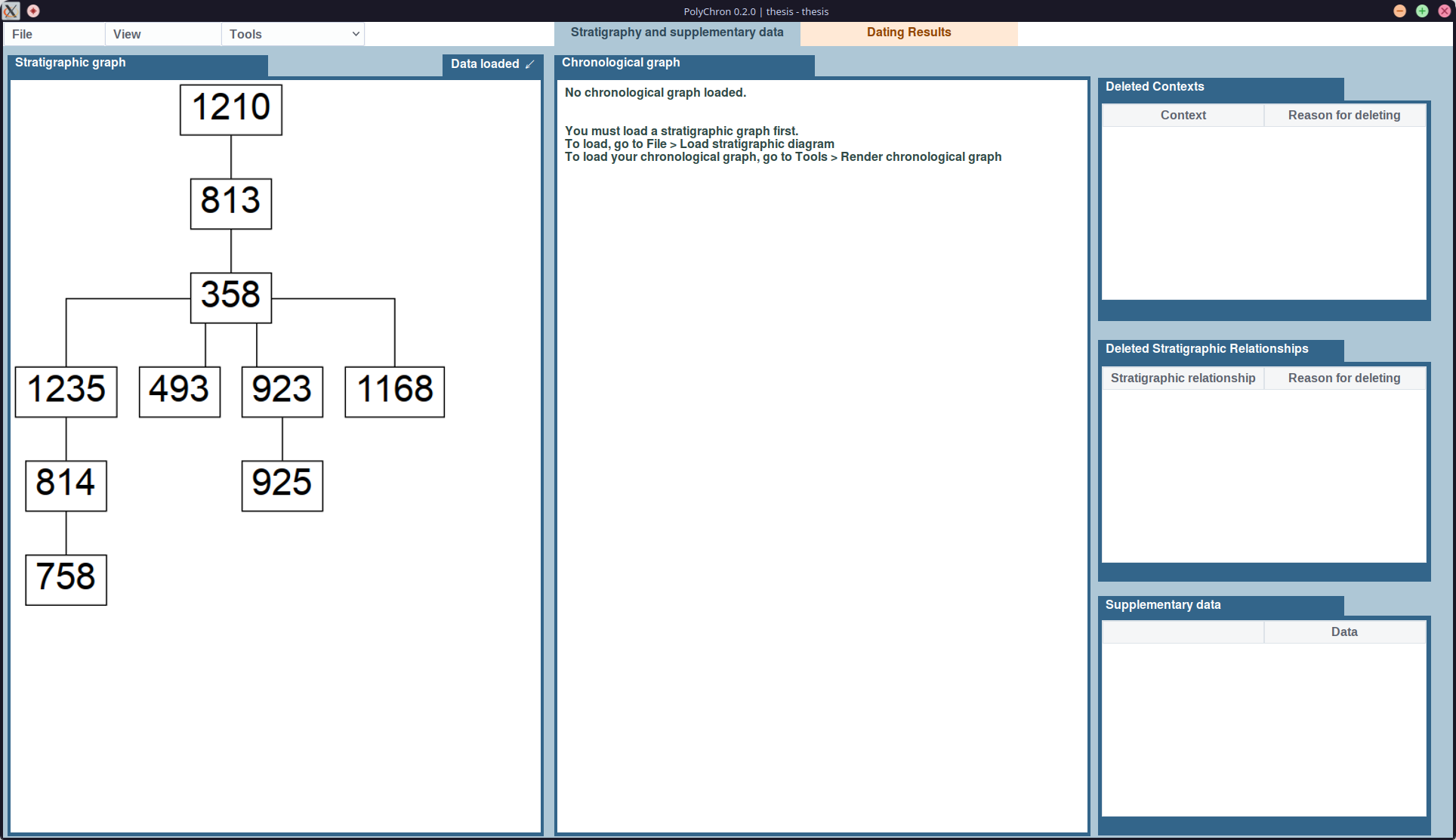

Once the data has been loaded, the stratigraphic DAG will be rendered

Input radiocarbon determinations

Radiocarbon determinations can be provided for contexts in the stratigraphic DAG from CSV file, by selecting File > Load scientific dating file (.csv). This must be after contexts have been loaded.

The CSV file must include 3 columns:

Column	Type	Description
context	str	The context label for the row
date	float	The radiocarbon date in BP
error	float	The laboratory error for radiocarbon estimate

For the example model from (Moody, 2023):

context,date,error
758,3275,75
814,3270,80
1235,3400,75
493,3190,75
925,3420,65
923,3435,60
1168,3160,70
358,3340,85
813,3270,75
1210,3200,70

Input context groupings

In PolyChron contexts belong to one of many groups. These can be loaded from CSV by selecting File > Load context grouping file (.csv), after the stratigraphic relationships have been loaded.

The context grouping input file is a CSV with 2 columns, where each row provides the group for a context:

Column	Type	Description
context	str	The context
Group	str	The group for the context

For example, the following CSV is a the context groupings file from the model used in (Moody, 2023):

context,Group
758,1
814,1
1235,1
493,1
925,1
923,1
1168,1
358,2
813,2
1210,2

Input group orderings

Like contexts, groups have relative relationships between one another in PolyChron. These are loaded from a CSV file, by selecting File > Load group relationship file (.csv)

The CSV file must have with 2 columns, and each row provides the relationship between two groups:

Column	Type	Description
above	str	The younger group
below	str	The older group
relationship	Optional: abutting, gap, overlap	Optional column containing the type of relationship.

For example, using the 2-group model included in (Moody, 2023):

above,below
2,1

Or including the optional third relationship column specifying the relationship between 2 and 1 is abutting:

above,below,relationship
2,1,abutting

Each group must:

• Be the above group in 0 or 1 relationships
• Be the below group in 0 or 1 relationships
• Be included in 1 or 2 relationships
  • i.e. every defined group must be included in at least one row

Saving the Model

PolyChron models are not saved automatically.

The model must be saved when the user is happy with the current state by selecting File > Save changes as current model.

Alternatively, the model can be saved as a copy, by selecting File > Save changes as new model and using the project selection/creation process to provide the new project and model to save as.

Switching Model

Alternate models from the same or other projects can be opened by selecting File > Load existing model or File > Load new project respectively.

Warning

Remember to save any changes to the current model you wish to keep before loading another Model

Manipulating the stratigraphic DAG

Once the stratigraphic relationships have been loaded from disk, the stratigraphic DAG can be manipulated using the right-click menu on the stratigraphic DAG.

Adding contexts

New contexts can be added to the model by right clicking on the stratigraphic DAG and selecting Add new contexts. A popup menu will be presented asking for a new context label.

Warning

Newly created contexts will not have groups or radiocarbon determinations, which can only be provided by CSV.

Deleting contexts

Contexts may be removed from the stratigraphic DAG by right-clicking on a context within the stratigraphic DAG, and selecting Delete context. A popup window will be created, asking for a reason why you are removing the context.

The removed context and reason for removal will be appended to the table of removed contexts.

Adding stratigraphic relationships

New stratigraphic relationships between nodes can be added by:

1. Right-clicking on the above context for the directed relationship and selecting Place above other context
2. Right-clicking on the below context for the directed relationship and selecting Place X Above" where X is the above context

If the new relationship is valid (does not form a loop etc.), it will be added to the stratigraphic DAG, otherwise an error will be reported.

Deleting stratigraphic relationships

Stratigraphic relationships between two contexts may be removed from the stratigraphic DAG by:

1. Right-clicking on one context in the relationship and selecting Delete stratigraphic relationship
2. Right-clicking on the second context in the relationship, and selecting Delete stratigraphic relationship with X, where X is the label of the first context selected

A popup window will be created, asking for a reason why you are removing the stratigraphic relationship.

The removed stratigraphic relationship and reason for removal will be appended to the table of removed stratigraphic relationships.

Viewing supplementary data for contexts

Supplementary data for a context can be displayed in the stratigraphy and supplementary data tab by right-clicking on a context and selecting Get supplementary data for this context. This will be displayed in the table at the bottom right of the window.

Equating contexts with one another

Two contexts can be equated with one-another, interactively through right-clicking or by loading a CSV file from disk.

The context labels of the contexts will be combined. E.g. for contexts 12 and ab, the combined context label would be 12 = ab.

Warning

After equating contexts, groups and determinations may need to be updated/corrected.

Using a CSV

A CSV file may provide a list of contexts to equate by selecting File > Load context equalities file (.csv).

The CSV file must have 2 columns, with each row providing the contexts to equate to one another:

Column	Type	Description
context_1	str	One of the contexts to equate
context_2	str	The other contexts to equate

For example, the CSV may look like:

context_1,context_2
1235,493

Using the stratigraphic DAG

Contexts may be equated interactively by:

1. Right-clicking on the first context to equate with another and selecting Equate context with another
2. Right-clicking on the second context to equate with another and selecting Equate context with X, where X is the label of the first context selected

Grouped rendering

The graph layout algorithm used in PolyChron (using Graphviz via NetworkX) aims to minimise the number of crossing edges. However, if the stratigraphic DAG contains multiple disjoint stratigraphic sequences, the vertical alignment of contexts may not accurately represent the stratigraphic relationship between the disjoint subgraphs. I.e. Contexts with older determinations may appear above younger contexts in other groups.

Users can optionally force grouped/phased rendering of stratigraphic graphs by selecting View > Display Stratigraphic diagram in phases. However, this can result in cluttered edge placement, so should be avoided unless necessary.

Rendering the chronological DAG

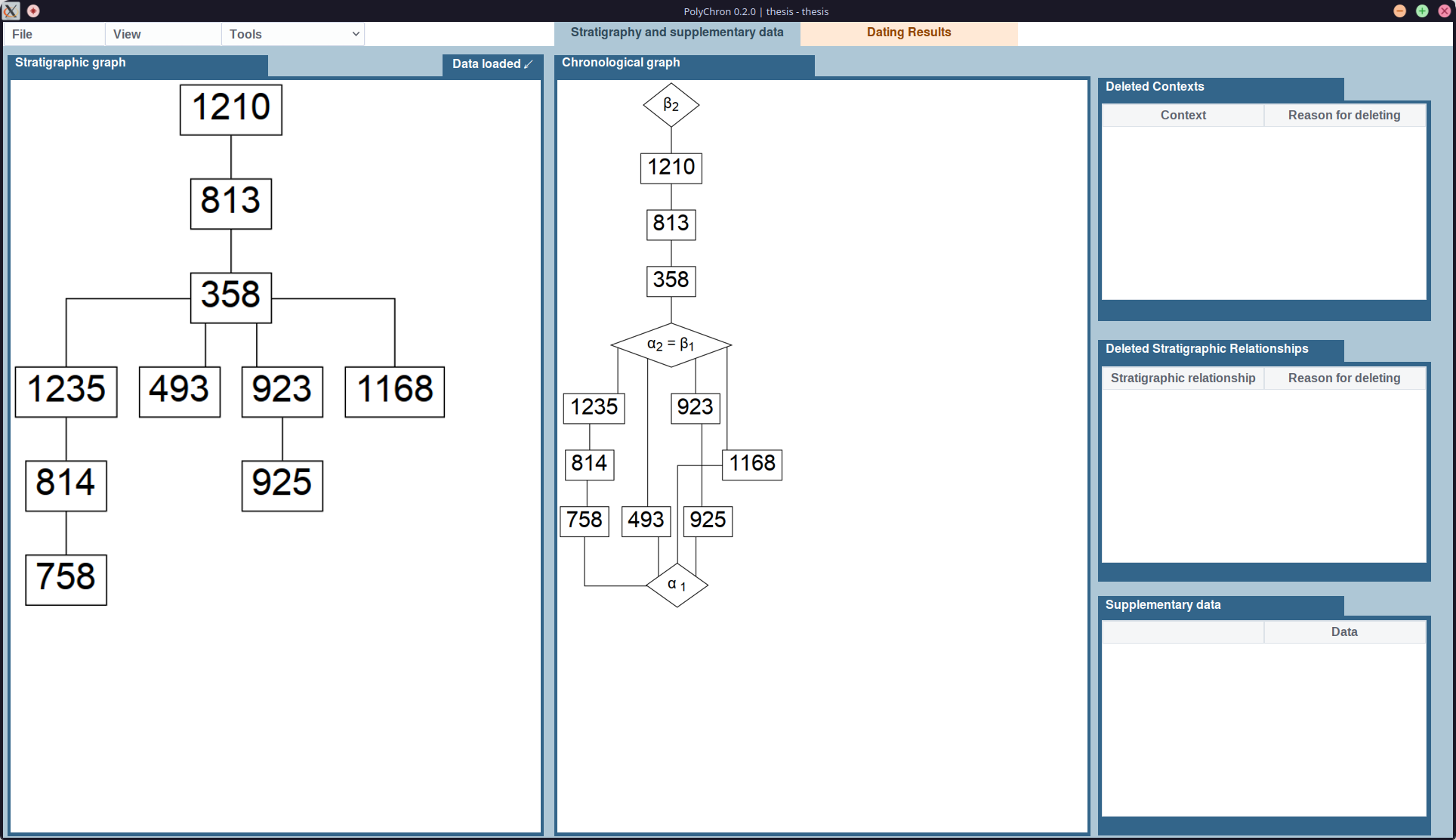

When the stratigraphic DAG has been fully formed and manipulated, the user can convert the stratigraphic DAG into a chronological DAG, by selecting Tools > Render chronological graph.

The Chronological DAG converts stratigraphic relationships to temporal relationships, accounts for residual & intrusive contexts, and adds group boundary nodes (rendered as diamonds/kites).

Identifying Residual and Intrusive contexts

When Tools > Render chronological graph is selected, the user will be asked:

"Do you suspect any of your samples are residual or intrusive?

• A residual sample is an older sample contaminating younger contexts
• A intrusive sample is a younger sample contaminating older contexts

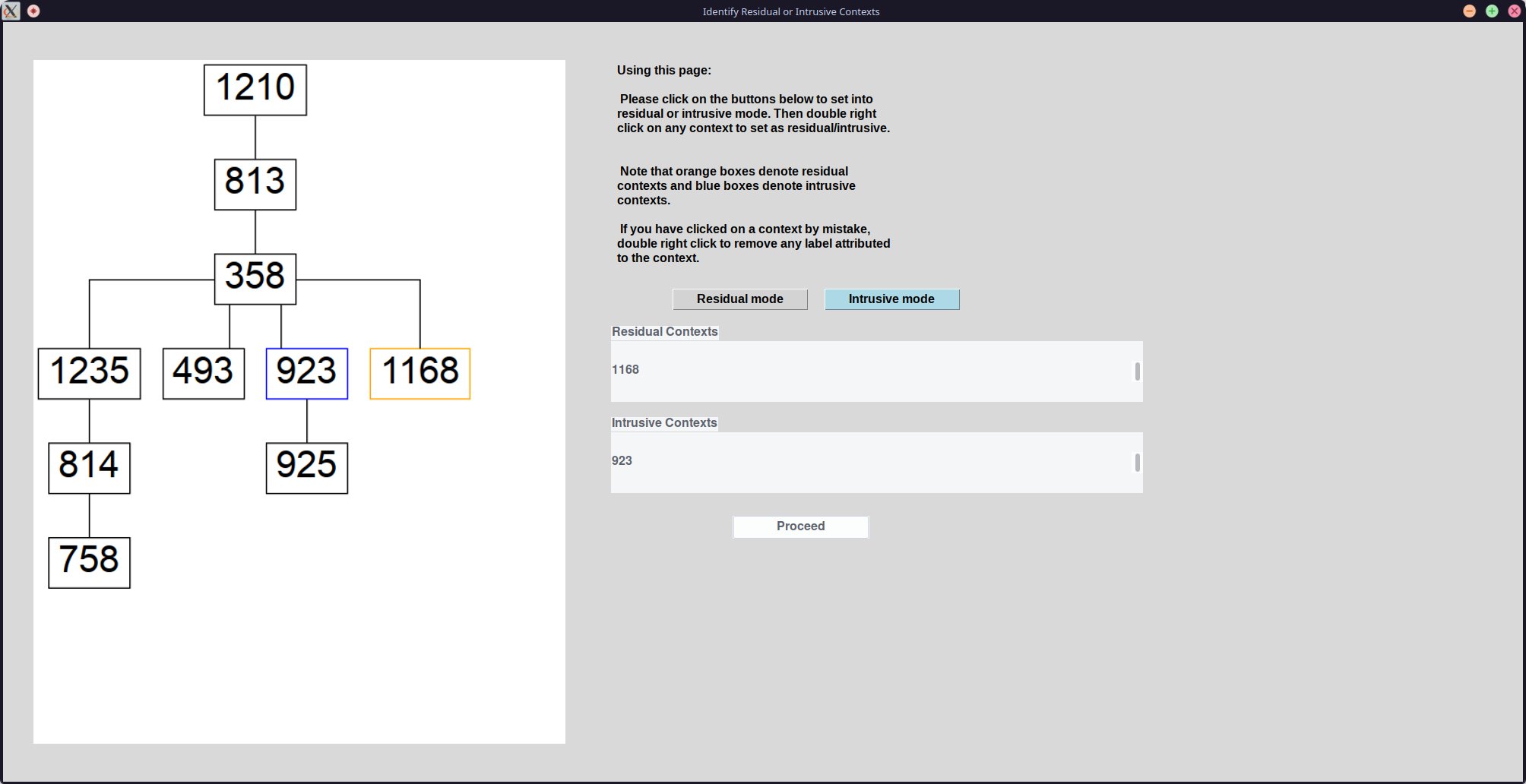

If the user believes their model includes residual or intrusive contexts, they will be presented with a popup window to select which contexts are intrusive or residual

The user must enable the Residual Mode or Intrusive Mode by clicking the appropriate button.

Contexts can then be marked with the current mode by double-right-clicking on the context box, changing the border colour to match the current mode and updating the relevant list. Contexts can be de-selected by double-right-clicking once again.

When all residual or intrusive contexts have been identified, a second popup window will be presented to the user to classify the type of each residual or intrusive context and how they should be handled, choosing from:

• Residual:
  • Exclude from modelling
  • Treat as TPQ (terminus post quem)
• Intrusive:
  • Exclude from modelling
  • Treat as TAQ (terminus ante quem)

During conversion from stratigraphic to chronological DAG, edges will be removed depending on how the residual and intrusive contexts have been identified.

When the categories are confirmed, chronological DAG rendering will progress to eliciting group relationships.

Eliciting group relationships

If the the user did not believe they had any residual or intrusive samples; or they have identified the residual or intrusive samples, the final information required to render the chronological DAG is the types of relationship between groups.

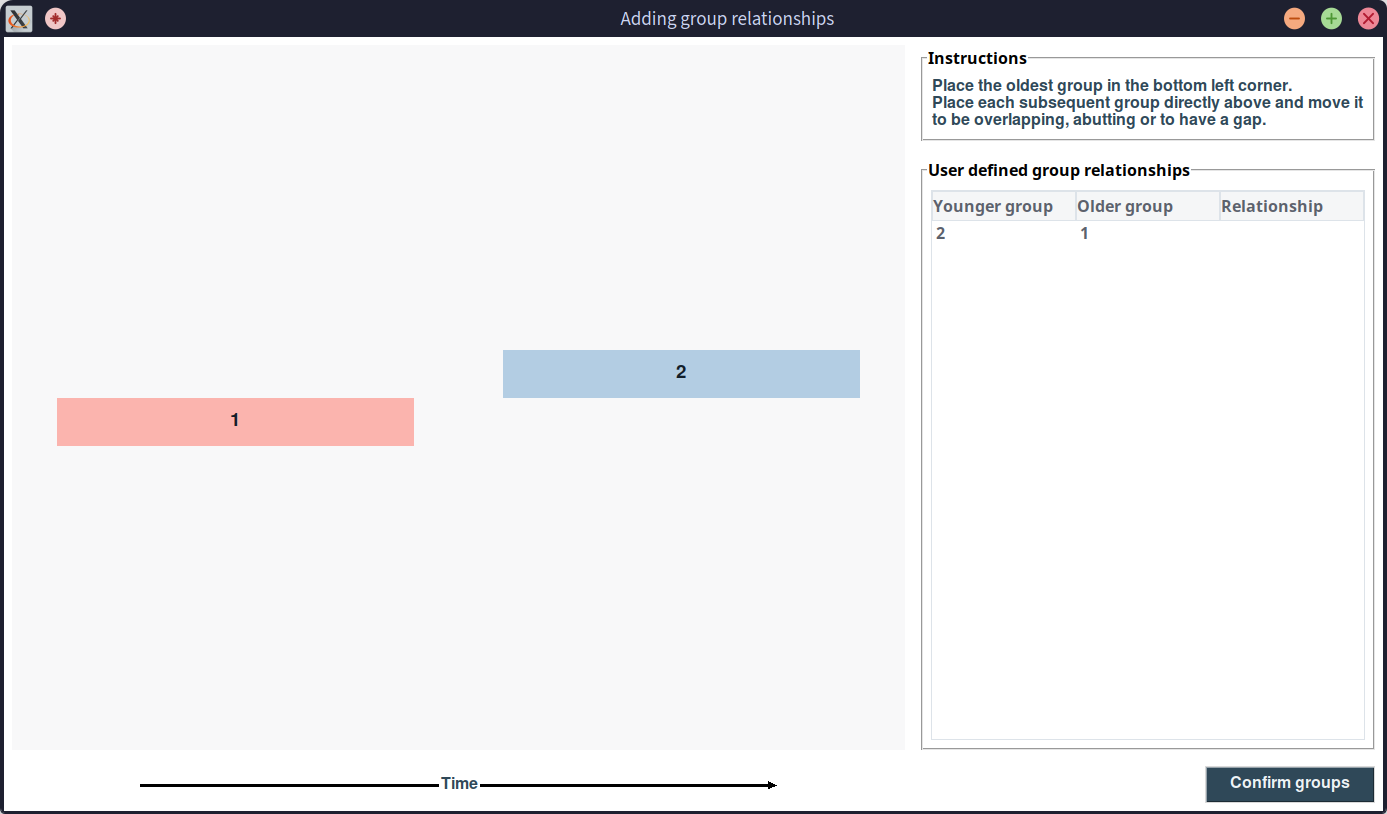

A new popup window will be presented to the user with: instructions; a rectangular box for each group; and a table of the current known group relationship information.

The user must drag-and-drop the group boxes to provide the type of each before-after relationship.

The oldest group should be placed at the lower left corner (group 1 in the example).

Other groups must then be placed relative to one another, implying one of three relationship types:

• abutting relationships must place the left and right hand edges next to one another (±15 pixels)
• gap relationships have a gap of at least 15 pixels between horizontal edges of the boxes
• overlap relationships have a horizontal overlap of at least 15 pixels.

Boxes will be initially placed in the correct order based on the provided group before-after relationships, and if the relationship type was also provided the correct initial abutting/gap/overlap relationship.

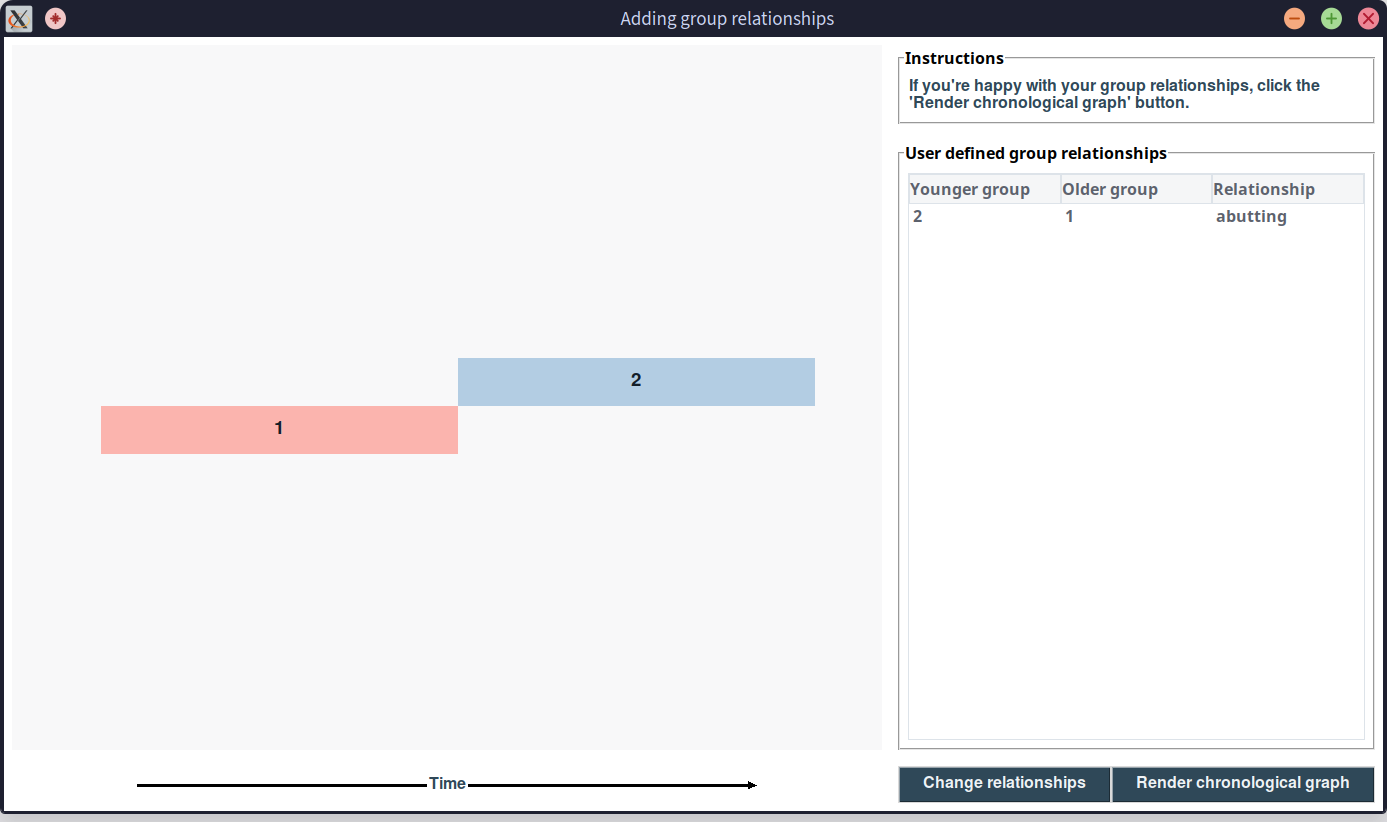

When the user is happy with their placement of boxes, they can click Confirm Groups. PolyChron will detect the classified relationships and show the user the detected relationship types, both in the table and by re-positioning boxes to the canonical positions for the types of relationships identified.

• If the user is happy with the detected relationships, they can select Render Chronological graph and proceed.
• If the user is unhappy with the detected relationships, they can select Change relationships, returning to the previous view and re-position the boxes. This can be repeated until they are happy with the detected relationship categories.

Finally, after Render Chronological graph has been selected, the popup window will close and the rendered chronological DAG will be visible.

Next

Once you are happy with the chronological DAG, proceed to posterior inference.
